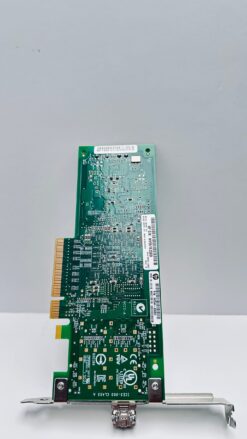

QLogic 8Gb FC Single-Port HBA

QLogic 8Gb FC Single-Port HBA

The QLogic 8Gb Fibre Channel (FC) Single-Port Host Bus Adapter (HBA) is a high-performance solution designed to connect servers to storage networks quickly and reliably. Built for enterprise environments, this adapter provides fast, dependable access to storage resources while offering advanced features that improve energy efficiency, performance, and system management.

One of the key innovations in this HBA is QLogic’s StarPower technology, which delivers intelligent, energy-efficient features. StarPower includes dynamic and adaptive power management, allowing the HBA to adjust its power consumption based on workload requirements. Features such as power-optimised and bandwidth-optimised PCI Express link training ensure the card only uses the energy needed for the task at hand. Low-power switching power supplies and a thermally efficient design also reduce airflow requirements, helping servers run cooler and lowering data centre energy costs.

The QLogic 8Gb FC Single-Port HBA is based on the QLE2560 adapter, with the dual-port version offered as the QLE2562. Both versions support data transfer speeds of 8, 4, or 2 Gbps with auto-negotiation, ensuring compatibility with existing Fibre Channel networks. Persistent binding and LUN masking features help improve storage security and management by controlling access to logical units on the network. The adapter can handle up to 2,048 concurrent logins, allowing it to support large-scale enterprise storage networks without performance issues.

Designed to meet modern server standards, the adapter is PCI Express 2.0 x8 compliant and backwards compatible with PCI Express 1.0a, making it suitable for a wide range of server configurations. Its standard PCI Express form factor and low-profile MD2 design ensure it can fit easily into both standard and low-profile slots. The single-port model includes one SFP+ connector with an LC-style interface, while the dual-port version has two connectors, offering flexible options for connectivity and redundancy.

Installation and management are straightforward. The HBA integrates seamlessly into servers, providing reliable connectivity to Fibre Channel storage arrays. Its robust design ensures stable performance under heavy workloads, making it ideal for enterprise environments where uptime and data availability are critical. IT teams can deploy the adapter quickly, enabling servers to access shared storage resources efficiently.

In addition to its performance and energy-saving features, the QLogic 8Gb FC Single-Port HBA provides a cost-effective way to upgrade or expand server connectivity to storage networks. Its combination of high-speed Fibre Channel support, intelligent power management, and flexible form factor makes it suitable for a wide range of enterprise applications, including virtualisation, database management, and high-performance computing.

Overall, the QLogic 8Gb FC Single-Port HBA is a reliable, energy-efficient, and high-performance solution for connecting servers to Fibre Channel storage networks. With its advanced StarPower technology, flexible PCI Express compatibility, and robust connectivity features, it helps organisations maintain high-speed access to critical storage while reducing power usage and improving overall data centre efficiency.
